2.5 and 5.0 Tonnes (Light and Medium Duty) | |||||||

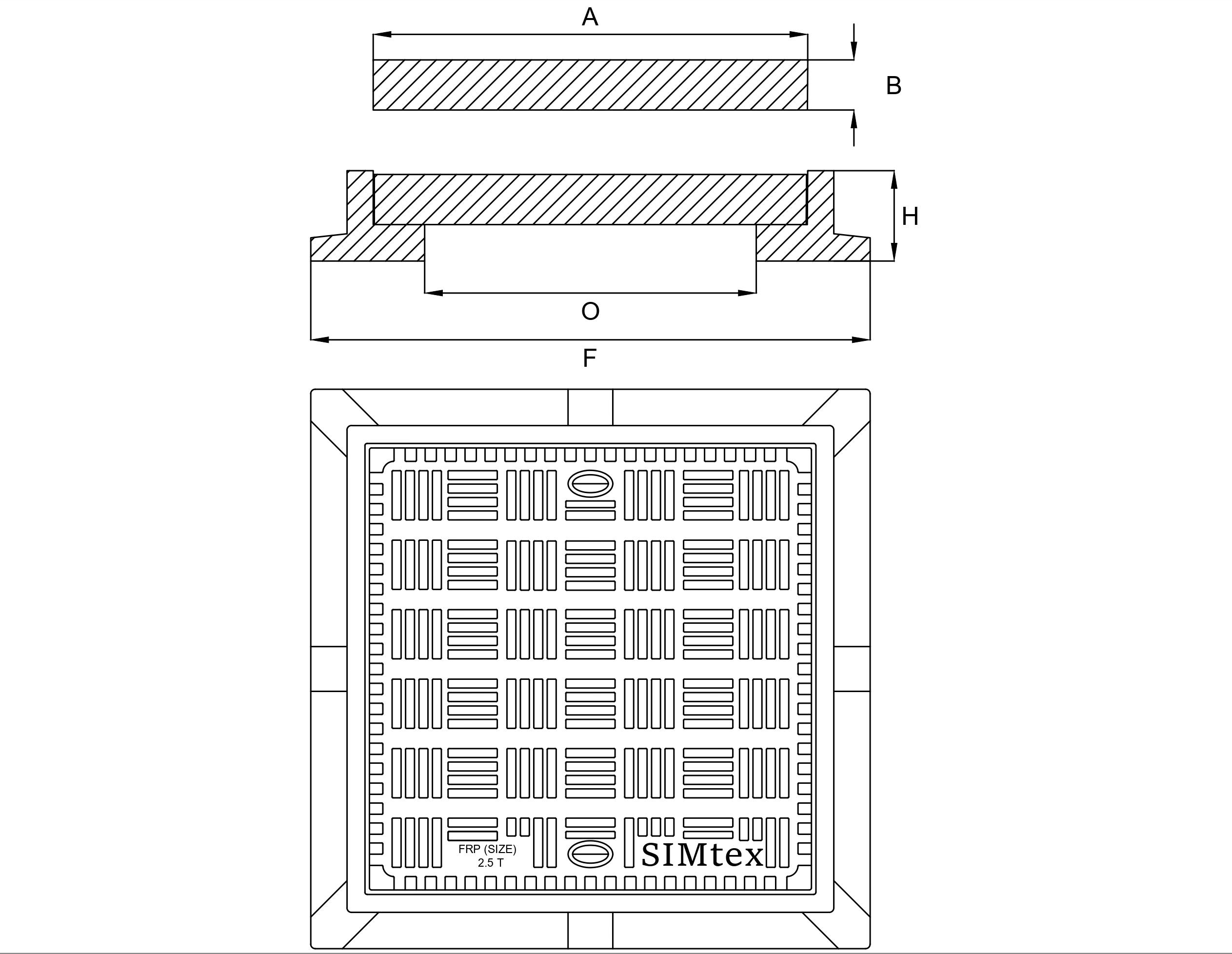

SHAPE | OUTER FRAME SIZE (F) | CLEAR OPENING (O) | FRAME HEIGHT (H) | WEIGHT PER PIECE (KG) | |||
INCH | MM | INCH | MM | MM | 2.5 T | 5.0 T | |
SQUARE | 10 X 10 | 255 X 255 | 7.5 X 7.5 | 190 X 190 | 25.0 | 2.0 | 2.3 |
12 X 12 | 325 X 325 | 10 X 10 | 245 X 245 | 25.0 | 3.0 | 3.7 | |
15 X 15 | 385 X 385 | 12 X 12 | 300 X 300 | 25.0 | 4.5 | 5.0 | |
18 X 18 | 450 X 450 | 15 X 15 | 380 X 380 | 25.0 | 6.8 | 7.3 | |
20 X 20 | 500 X 500 | 15 X 15 | 370 X 370 | 30.0 | 9.0 | 10.0 | |
21 X 21 | 560 X 560 | 18 X 18 | 450 X 450 | 30.0 | 11.0 | 12.0 | |
24 X 24 | 615 X 615 | 20 X 20 | 505 X 505 | 30.0 | 13.5 | 15.0 | |
28 X 28 | 720 X 720 | 24 X 24 | 600 X 600 | 32.0 | 19.5 | 21.3 | |
30 X 30 | 765 X 765 | 26 X 26 | 655 X 655 | 32.0 | 22.0 | 24.5 | |
36 X 36 | 910 X 910 | 30 X 30 | 750 X 750 | 36.0 | 38.0 | 40.4 | |
RECTANGLE | 9 X 12 | 230 X 305 | 6 X 9 | 150 X 230 | 25.0 | 2.2 | 2.5 |
12 X 15 | 305 X 375 | 9 X 12 | 230 X 300 | 25.0 | 3.5 | 3.8 | |
12 X 18 | 317 X 470 | 9 X 15 | 240 X 390 | 25.0 | 4.5 | 5.0 | |
18 X 24 | 460 X 615 | 14 X 20 | 350 X 500 | 30.0 | 10.3 | 11.3 | |
21 X 28 | 560 X 720 | 18 X 24 | 445 X 610 | 32.0 | 15.5 | 17.0 | |
24 X 42 | 620 X 1070 | 18 X 36 | 450 X 900 | 36.0 | 31.0 | 32.5 | |
31 X 42 | 770 X 1070 | 24 X 36 | 600 X 900 | 36.0 | 37.5 | 40.0 | |
B125/C250 (HEAVY DUTY) | ||||||
SHAPE | OUTER FRAME SIZE (F) | CLEAR OPENING (O) | FRAME HEIGHT (H) | WEIGHT PER PIECE | ||
INCH | MM | INCH | MM | MM | KG | |
SQUARE | 17 X 17 | 420 X 420 | 12 X 12 | 300 X 300 | 65.0 | 16.5 |
24 X 24 | 595 X 595 | 18 x 18 | 450 X 450 | 65.0 | 32.5 | |
30 X 30 | 780 X 780 | 24 x 24 | 600 X 600 | 65.0 | 55.0 | |
RECTANGLE | 25 X 30 | 630X780 | 18 x 24 | 450 X 600 | 65.0 | 45.0 |
ROUND | 30 | 780 | 24 | 600 | 65.0 | 43.7 |
